Cell Ceilings – Square
DESCRIPTION

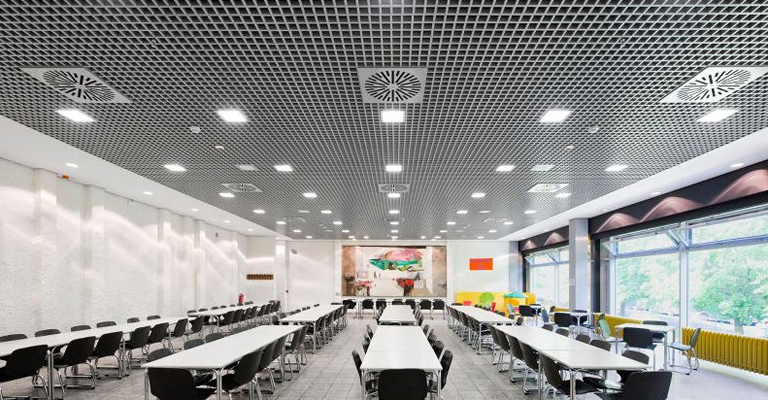

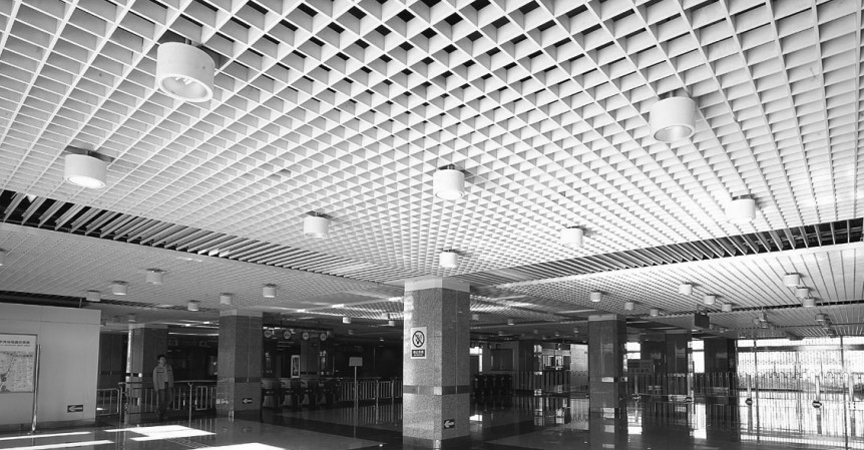

The Open-Cell Ceiling system is composed of interlocking aluminum strips that form square grids. It is ideal for large open spaces such as airports, train stations, and commercial centers.
FEATURES
Color Chart
CV2001
CV2002
CV2003
CV2016
CV2021
CV2028
Aluminium Thickness
0.40 mm
0.50 mm
Cell Size
75×75 mm
100×100 mm
150×150 mm
200×200 mm
| Standard Size (mm) | Aluminium Thickness (mm) | Material norms per ㎡ |
|---|---|---|
| 75x75x50x10(15)x1950 | 0.4, 0.5 | 13.33m Cell main; 13.33m Cell cross; 1.5 Hangers |
| 100x100x50x10(15)x2000 | 0.4, 0.5 | 10m Cell main, 10m Cell cross, 1.5 Hangers |
| 150x150x50x15x1950 | 0.4, 0.5 | 6.7m Cell main, 6.7m Cell cross, 1.5 Hangers |
| 200x200x50x15x1950 | 0.4, 0.5 | 5m Cell main, 5m Cell cross, 1.5 Hangers |
